61 31 245 Removing and installing / replacing rear window button

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SHAFT BEARING FOR REAR WINDOW WIPER

IMPORTANT:

When disconnecting plug connection (2), make sure no tensile load is exerted on foil conductor (risk of damage).

If necessary, remove adhesive tape (1).

Disconnect plug connection (2).

Remove secured rear window button (3).

Installation:

If necessary, replace gasket.

Fig 1: Locating Plug Connection, Secured Rear Window Button, And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in cable (2) of rear window button (1) through bore hole (3).

Connect plug connection (4) and secure with adhesive tape if necessary.

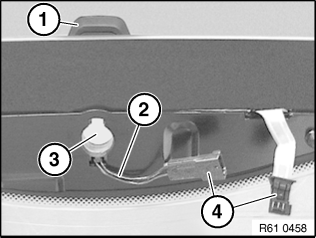

Fig 2: Identifying Cable, Bore Hole, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
