61 62 110 Removing and installing/replacing spray nozzle for rear window washer unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SPOILER

Release screws (1).

Open hose holder (2).

Installation:

Make sure hose holder (2) is correctly engaged.

Feed additional stop light (3) in direction of arrow out of rear spoiler (4) and remove.

Fig 1: Identifying Hose Holder, Stop Light, Rear Spoiler, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

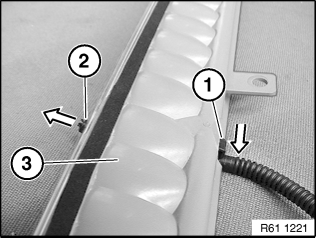

Unlock catch (1) and pull spray nozzle (2) in direction of arrow out of additional stop light (3).

Fig 2: Locating Catch And Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.
