61 62 060 Removing and installing/replacing rear window wiper motor (Touring)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 1 330

Necessary preliminary tasks:

Remove TRIM FOR REAR LID

Disconnect plug connections (1).

Release screws (2).

Remove rear window wiper motor (3).

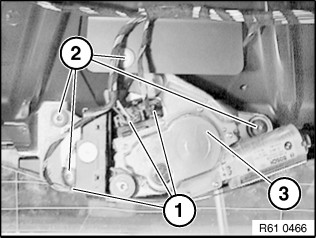

Fig 1: Identifying Rear Window Wiper Motor, Plug Connections, And Screws

G00468820

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove rear window lock (2).

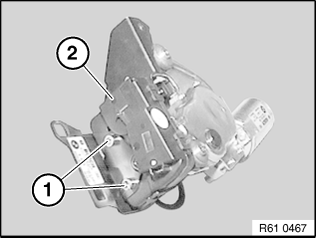

Fig 2: Identifying Rear Window Lock And Screws

G00468821

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place special tool 61 1 330 on drive of rear window wiper and close rear window.

Allow journal of wiper shaft bearing to snap into bore (1) with rear window wiper standing vertical.

Tighten rear window wiper motor to specified torque, tightening torque 61 62 8AZ .

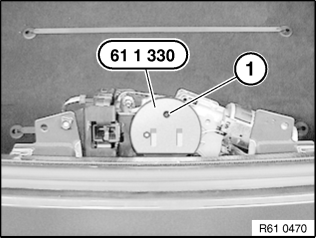

Fig 3: Identifying Special Tool (61 1 330)
