61 62 030 Removing and installing/replacing wiper arm on rear window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

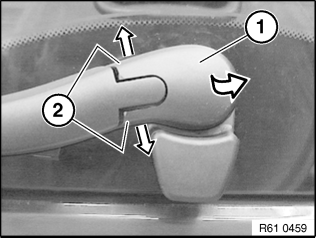

Fold up cover cap (1) in direction of arrow.

If necessary, spread internal mounts (2) as illustrated and remove cover cap (1).

Fig 1: Identifying Cover Cap And Internal Mounts

G00468814

Courtesy of BMW OF NORTH AMERICA, INC.

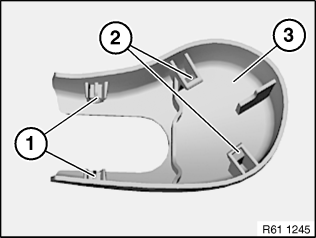

Mounts (1) and catches (2) of cover cap (3) must not be damaged.

Fig 2: Locating Mounts And Catches On Cover Cap

G00468815

Courtesy of BMW OF NORTH AMERICA, INC.

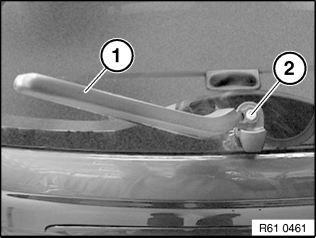

Raise rear window wiper arm (1).

Release nut (2) and remove rear window wiper arm (1).

If necessary, replace wiper blade.

Fig 3: Identifying Rear Window Wiper Arm And Nut

G00468816

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Wiper motor must be in end position.

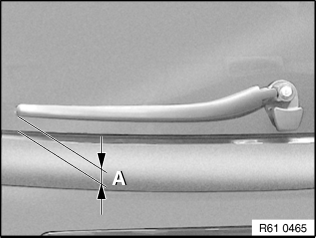

Adjust dimension (A) between middle of rear window wiper arm and rear window edge.

Measurement (A): 30 mm.

Tighten nut to specified torque, tightening torque 61 62 5AZ .

Fig 4: Identifying Dimension (A) Measurement

G00468817

Courtesy of BMW OF NORTH AMERICA, INC.
