37 1 150 Spanner

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For releasing and tightening down screw connection of hydraulic lines on valve block (Dynamic Drive).

Series: E60, E61, E70, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93, R55, R56

SI number: 01 22 06 (307)

Order number: 37 1 150

Spanner

Consisting of:

1 = 37 1 151 Wrench WAF 14

2 = 37 1 152 Wrench WAF 19

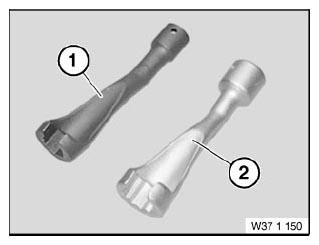

Fig 1: Identifying Spanner (37 1 150)

Courtesy of BMW OF NORTH AMERICA, INC.
