51 12 157 Replacing rear bumper trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim

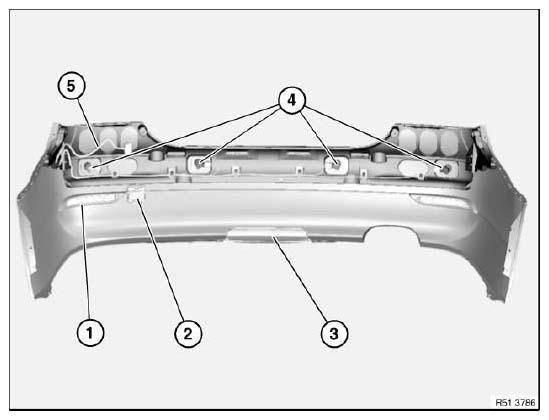

Fig 1: Identifying Rear Bumper Trim Components
Courtesy of BMW OF NORTH AMERICA, INC.

Remove reflector (1). (not M5). See 63 14 120 REMOVING AND INSTALLING/REPLACING REAR REFLECTOR .

Remove cover cap (2) for tow lug.

If necessary, remove flap for towing hitch (3) (not M5).

Version with Park Distance Control:

Remove all ultrasonic transducers (4). See 66 20 540 REMOVING AND INSTALLING/REPLACING A REAR ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) .

Remove wiring harness (5) for ultrasonic transducers.

Fig 2: Identifying Catches And Frame

Courtesy of BMW OF NORTH AMERICA, INC.
