51 31 030 Removing and installing or replacing left or right gutter strip along windscreen

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip gutter strip (1) towards top.

IMPORTANT: Replace clips (2) after each removal.
Note part number.

Installation:

Locks (3) of clips (2) must not be damaged.

Gutter strip (1) must not be damaged, replace if necessary.

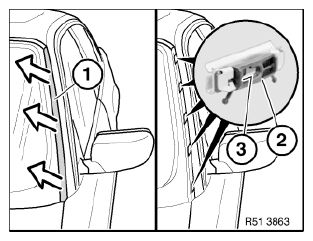

Fig 1: Removing Gutter Strip
G04728429Courtesy of BMW OF NORTH AMERICA, INC.
