51 14 110 Removing and installing/replacing rear model designation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The " Instructions for number/letter combination cementing "
serve as the basis for these repair instructions and must be followed without fail.
Fitting dimensions (E60, E61):

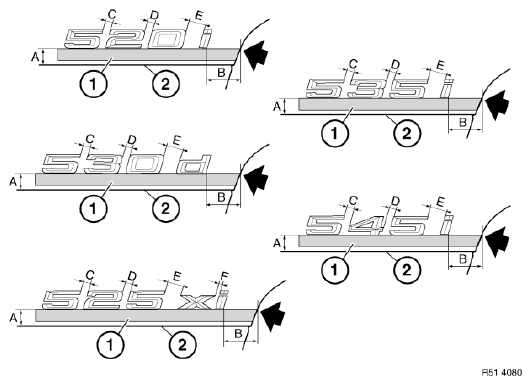

Stick on adhesive tape (1) between edge of rear lid (2) and top edge "A". Mark measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).
Dimensions:
MARK MEASUREMENT
| E60 | A = 18 mm | B = 40 mm |
| E61 | A = 17 mm | B = 31.5 mm |
NOTE:
Measurements C, D and E are for information purposes only, as determined by carrier film.
520 i...540 i, 550 i: C = 7 mm, D = 7 mm, E = 20 mm
545 i : C = 4 mm, D = 5 mm, E = 20 mm
520 d...535 d: C = 7 mm, D = 7 mm, E = 20 mm
525 xi...535 xi: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
525 xd...530 xd: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
520 i...540 i, 550 i: C = 7 mm, D = 7 mm, E = 20 mm
545 i : C = 4 mm, D = 5 mm, E = 20 mm
520 d...535 d: C = 7 mm, D = 7 mm, E = 20 mm
525 xi...535 xi: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
525 xd...530 xd: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
A = 24 mm
B = 33 mm
E61 dimensions:
A = 22 mm
B = 20 mm
NOTE:
Measurement C is for information purposes only, as it is determined by carrier film.
C = 9 mm
