23 31 545 Replacing Both Locking Bolts For 6th/Reverse Gear (I Transmission) - Transmission Removed

Special tools required:

• 23 4 021
• 23 4 023

Fig 1: Sealing Caps 1 And 2 Are Located Above Circlip (Gas Engine)

Courtesy of BMW OF NORTH AMERICA, INC.

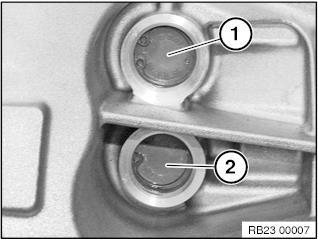

Fig 2: Sealing Caps 1 And 2 Are Located Below Circlip (Diesel Engine)

Courtesy of BMW OF NORTH AMERICA, INC.

For diesel engines: Lever circlip (1) out of housing with a suitable tool. Installation note: Install circlip (1).

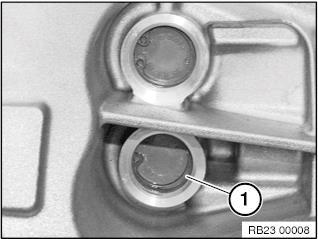

Fig 3: Lever Circlip (1) Out Of Housing With A Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

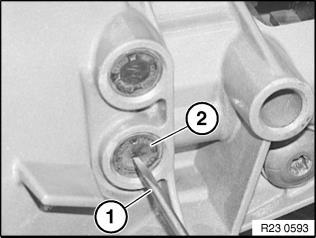

Using a suitable tool (1), drive hole into sealing cap (2) and lever out of housing. Important! Bore hole must not be damaged. A burr or a dent can cause the sealing cap to leak. Installation note: Replacing sealing cap (2). Note: Illustration shows: Sealing cap for reverse gear

Fig 4: Drive Hole Into Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

With petrol engines: Remove circlip (1) and washer (2). In diesel engines, no washer is fitted.

Fig 5: Remove Circlip (1) And Washer (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove compression spring and locking bolt. Important! Compression springs and locking bolts for 6th gear and reverse gear must not be mixed up.

Fig 6: Reverse Gear Locking Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

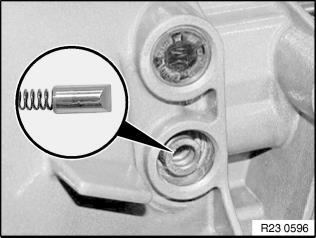

Fig 7: Bevel Must Point In Bell Housing Downwards To Reverse Gear

Courtesy of BMW OF NORTH AMERICA, INC.

With petrol engines: Using special tool 23 4 023, drive locking bolt with compression spring, washer and circlip simultaneously into housing.

For diesel engines: Using special tool 23 4 023, drive locking bolt with compression spring, sealing cap and circlip simultaneously into housing.

Fig 8: Using Special Tool 23 4 023, Drive Locking Bolt With Compression Spring

Courtesy of BMW OF NORTH AMERICA, INC.

With petrol engines: Drive in sealing cap (1) with special tool 23 4 021.

Fig 9: Drive In Sealing Cap (1) With Special Tool 23 4 021

Courtesy of BMW OF NORTH AMERICA, INC.
