11 40 000 Checking engine oil pressure (With Hydraulic Valve): Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The regulated oil pump can only be checked and measured with the diagnosis system.

Vehicles with a regulated oil pump have a HYDRAULIC VALVE fitted.

Diagnosis path:

DME Motor Electronics
Complete vehicle
Drive
Engine electronics
Engine oil
Oil-pressure control

Special tool 11 9 250 must be converted for the N52k and N53.

Necessary preliminary tasks:

Connect BMW diagnosis system to vehicle.
Observe diagnosis instructions.
Protect drive belt against dirt
Have a cleaning cloth ready to catch escaping oil

Secure special tool 11 9 250 at hexagon head in a vice.

Release insert (2) using a screwdriver (1) in direction of arrow.

Fig 1: Releasing Insert Using Screwdriver

G05777440

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw piece (1) on special tool 11 6 410.

Fig 2: Identifying Screw Piece With Special Tool (11 6 410)

G05777441

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 11 6 410 in special tool 11 9 250.

Insert central screw with a screwdriver (1) hand-tight.

Fig 3: Inserting Central Screw Using Screwdriver

G05777442

Courtesy of BMW OF NORTH AMERICA, INC.

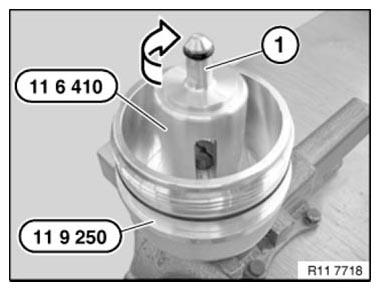

Insert screw piece (1) hand-tight in direction of arrow on special tool 11 6 410.

Fig 4: Tightening Screw Piece

G06900950

Courtesy of BMW OF NORTH AMERICA, INC.

Release oil filter cap with special tool 11 9 240 .

Tightening torque: 11 42 1AZ

Fig 5: Removing Oil Filter Cap Using Special Tool (11 9 240)

G04725319

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully detach filter element.
