00 0 040 Special tool board IV complete

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.

NOTE: Size 2 m x 1 m

Series: All models

Storage location: Tool cabinet

Order number: 00 0 040

Special tool board IV complete

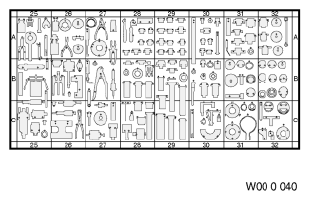

Fig 1: Identifying Special Tool - 00 0 040 Special Tool Board IV Complete

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

3 = 00 0 043 Hook set for films 10, 11 and 12

4 = 00 0 044 Film 10 (left)

NOTE: For fields A/B/C 25... 27

5 = 00 0 045 Film 11 (center)

NOTE: For fields A/B/C 27/28 and 29/30

6 = 00 0 046 Film 12 (right)

NOTE: For fields A/B/C 30... 32
