23 4 030 Fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 23 4 040 Grease gun

NOTE: For removing and installing guide bearing (pilot bearing) in transmission input shaft.

Transmission: GS6-53DZ

SI number: 01 05 06 (248)

Order number: 23 4 030

Fixture

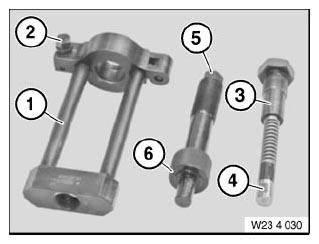

Fig 1: Identifying Special Tool - 23 4 030 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 23 4 031 Bridge

2 = 23 4 032 M10x120 screws with nuts (2 x)

3 = 23 4 033 Grease cartridge

4 = 23 4 034 Brass adapter

5 = 23 4 035 Pressure spindle

6 = 23 4 036 Thrust member
