23 4 020 Drifts

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For driving in bearing bushings for locking pins, 5th and reverse gears.

Transmission: GS5-39DZ, S5D 320Z

Storage location: B49

SI number: 1 03 04 (070)

Order number: 23 4 020

Drifts

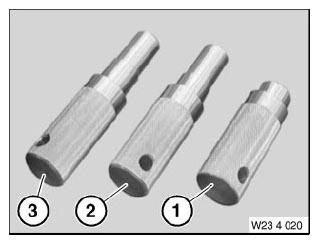

Fig 1: Identifying Special Tool - 23 4 020 Drifts

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 23 4 021 Drift

NOTE: For driving in cover caps on gear notch, 5th and reverse gears.

2 = 23 4 022 Drift

NOTE: For driving in bearing bushing for locking pin, 5th gear.

3 = 23 4 023 Drift

NOTE: For driving in bearing bushing for locking pin, reverse gear.
