23 4 010 Removal tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For pressing connector out of transmission

Transmission: GS6-85BG

Storage location: B83

SI number: 1 02 02 (823)

Order number: 23 4 010

Removal tool

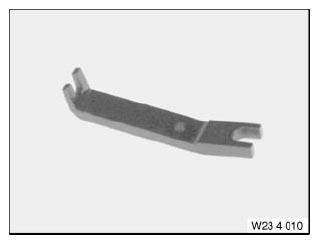

Fig 1: Identifying Special Tool - 23 4 010 Removal Tool

Courtesy of BMW OF NORTH AMERICA, INC.
