23 3 210 Extractor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing shaft seal on output shaft

Transmission: GS6-53BZ, GS6-53DZ

Storage location: A50

SI number: 1 11 04 (093)

Order number: 23 3 210

Extractor

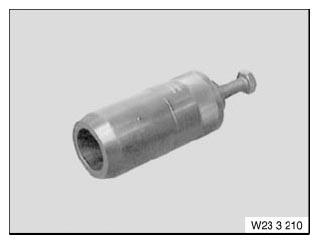

Fig 1: Identifying Special Tool - 23 3 210 Extractor

Courtesy of BMW OF NORTH AMERICA, INC.
