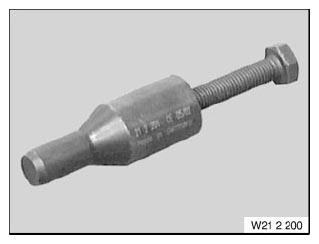

21 2 200 Clutch centering tool
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
NOTE:
For centering clutch plate during installation. H-transmission
Transmission: GS6-37BZ, GS6-37DZ
Storage location: B44, C44
SI number: 01 10 02 (907)
Order number: 21 2 200
Clutch centering tool
Consisting of:
1 = 21 2 201 Clutch centering tool
NOTE:
With M10 screw Transmission: GS6-37BZ / DZ (H-transmission)
