11 9 220 Puller

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For RSS out of engine block at front

Engine: N40, N42, N43, N45, N45T, N46, N51, N52, N52K, N53, N54

Storage location: C43

SI number: 1 01 01(662)

Order number: 11 9 220

Puller

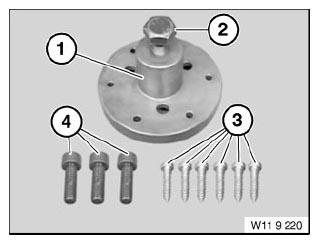

Fig 1: Identifying Special Tool - 11 9 220 Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 9 221 Thrust member

In conjunction with:

4 = 11 9 224 Screws (3 x)

5 = 11 9 225 Screw

6 = 11 9 226 Extractor
