11 8 580 Wrench socket Torx T60

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing and installing cylinder head (outside dia. 13.5 mm).

Engine: N52K, N53, N54

Storage location: A20, B20

SI number: 1 20 06 (299)

Order number: 11 8 580

Wrench socket Torx T60

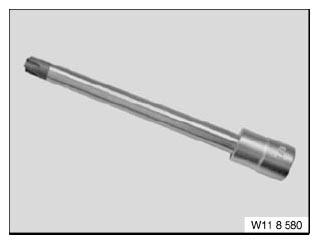

Fig 1: Identifying Special Tool - 11 8 580 Wrench Socket Torx T60

Courtesy of BMW OF NORTH AMERICA, INC.
