11 4 460 Locating fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For locating upper and lower bearing strip when installing exhaust camshaft.

Engine: N51, N52, N52K, N53

SI number: 1 17 04 (130)

Order number: 11 4 460

Locating fixture

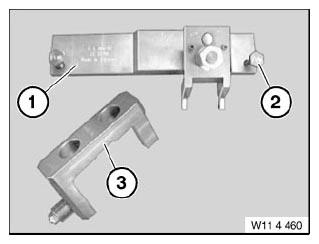

Fig 1: Identifying Special Tool - 11 4 460 Locating Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 4 461 Press-down tool, 2nd cylinder

2 = 11 4 462 M7 screws (2 x)

3 = 11 4 463 Thrust pieces (6 x)
