11 4 270 Removal and mounting fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing and installing pressure spring for intermediate lever.

Engine: N51, N52, N52K, N53

Storage location: B51, C51

SI number: 1 17 04 (130)

Order number: 11 4 270

Removal and mounting fixture

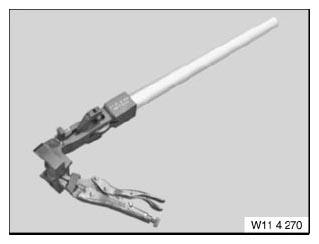

Fig 1: Identifying Special Tool - 11 4 270 Removal And Mounting Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
