11 4 250 Gauge with adapter plate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For securing oil spray nozzles.

Engine: N43, N51, N52, N52K, N53

SI number: 1 17 04 (130)

Order number: 11 4 250

Gauge with adapter plate

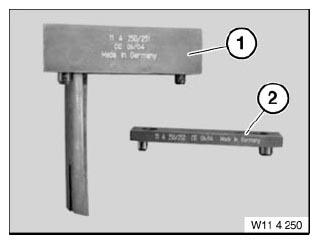

Fig 1: Identifying Special Tool - 11 4 250 Gauge With Adapter Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 4 251 Gauge

2 = 11 4 252 Adapter plate
