11 0 370 Extractor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For removing front radial shaft seal.

Engine: N43, N45T, N46T, N51, N52, N52K, N53

SI number: 01 15 07 (390)

Order number: 11 0 370

Extractor

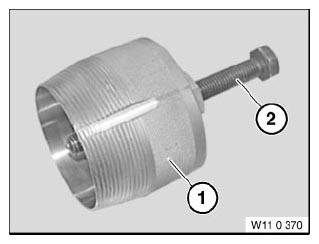

Fig 1: Identifying Special Tool - 11 0 370 Extractor

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 0 371 Bushing with external thread

2 = 11 0 372 Spindle
