22 11 110 Replacing Left Engine Support Arm (N62TU)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery . See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Secure engine in installation position
- Remove reinforcement plate . See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .
- Drain off engine oil
- Remove heat shields
- Remove front differential . See 31 50 001 REMOVING AND INSTALLING/REPLACING FRONT DIFFERENTIAL .

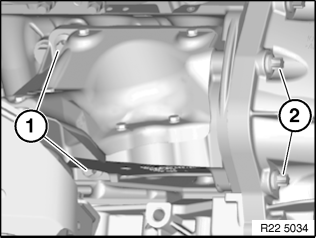

Release screws (1) and (2) and remove engine support arm. Tightening torque 22 11 3AZ, see EXHAUST SYSTEM - TIGHTENING TORQUES .
