17 11 000 Removing And Installing Radiator (N62)
WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
- FOLLOW INSTRUCTIONS FOR WORKING ON COOLING SYSTEM .
- REMOVE FAN COWL WITH ELECTRIC FAN .
- Remove front splash guard.
- Drain coolant.
- DETACH HEAT EXCHANGER FOR AUTOMATIC TRANSMISSION FROM RADIATOR .
- Unlock and detach all COOLANT HOSES on radiator.
Necessary preliminary tasks:

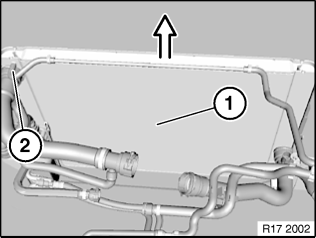

Remove radiator (1) upwards in direction of arrow.
Installation:
Ensure correct seating in side guides.
Top up coolant.
