52 24 311 Removing And Installing/Replacing Lock For Left Or Right Rear Seat Backrest

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, and 2007 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

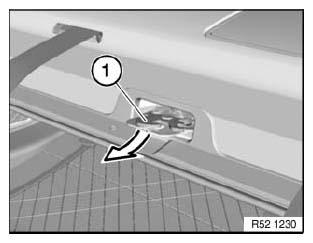

Perform emergency actuation for rear seat backrest (1).

Unfasten screws (2).

Tightening torque: 52 24 2AZ . See REAR SEAT (NORMAL), MANUAL for specs.

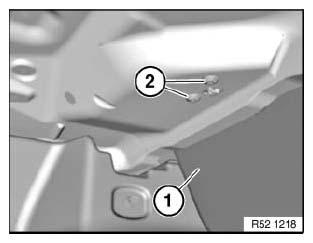

Fig 1: Identifying Rear Seat Backrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest and set down forwards.

Remove lock (1) completely from installation opening.

Fig 2: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Display bridge (1) can be pressed out of lock during emergency actuation.

Remove display bridge (1) from lock.

Display bridge (1) does not have to be reinstalled.

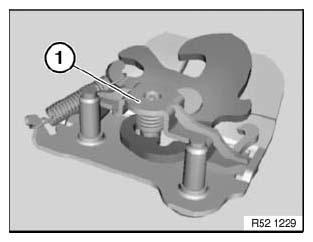

Fig 3: Identifying Display Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide guide lug (1) of lock into opening (2).

Fig 4: Sliding Guide Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting lock:

Slacken screws
Firmly push engaged backrest back
Tighten down screws

IMPORTANT:

Check backrest lock without fail.
