52 17 035 Removing And Installing/Replacing Gearing For Head Restraint Adjustment
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, and 2007 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SHAFT for head restraint adjustment

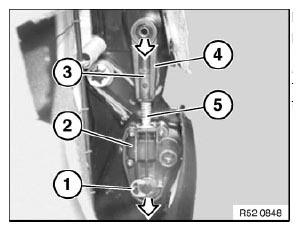

Remove retainer (1) on left and right.
Remove gearing (2) on left and right straight towards front.
Installation:
To ensure identical adjustment of gearings (2), carry out following work step on both gearings:
- Unscrew component (4) until threaded rod (5) is flush with edge (3).
