52 13 393 Removing And Installing/Replacing Front Left Or Right Crash-Active Head Restraint
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, and 2007 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling may result in triggering of the crash-active head restraint and thereby cause injury.
Switch off ignition!
Necessary preliminary tasks:
- Disconnect battery negative lead
- Remove REAR PANEL

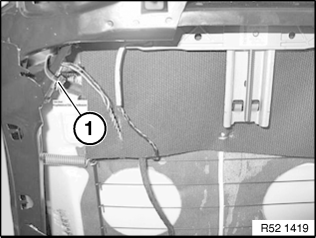

Unfasten plug connection (1) and disconnect.
Feed wiring harness out of backrest frame.
Lift out head restraint.
