66 54 001 Adjusting Night Vision Camera

WARNING: This page is about a different car, the 2007 BMW M5, 2007 BMW 550i, 2006 BMW M5, and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Mechanical adjustment - as described in the following - is only possible axially .

Vertical adjustment can only be carried out with the BMW diagnosis system:

Service functions
- Body
- Night vision
- Night vision camera
- Vertical adjustment

Necessary preliminary tasks:

Remove GRILLE IN BUMPER TRIM on left

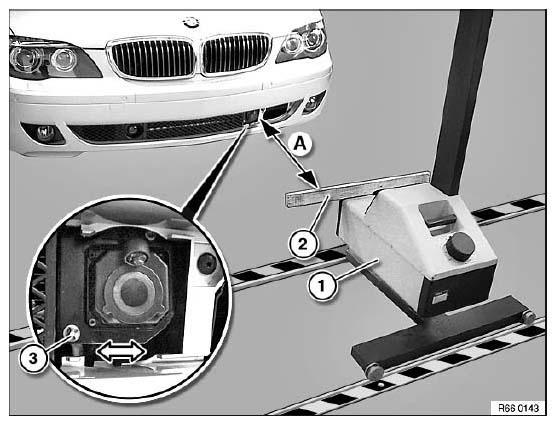

Fig 1: Identifying Distance Between Car And Headlight Aiming Device

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Front of car must be parallel at distance (A) to headlight aiming device (1).

A = 1.5 m

Align a suitable straight object (2), e.g. a spirit level, horizontally on headlight aiming device.

Slowly carry out axial adjustment of night vision camera at adjusting screw (3).

NOTE:

Illustration shows the in-car monitor view.

If necessary, align the picture of the night vision camera with aid of a second person.

Top edge (A) must be aligned parallel to top edge of screen (B).
