63 12 870 Replacing Ignition Unit For Left Xenon Headlight

Slacken screws (1)

Release screws (2).

Pull out headlight (3) slightly in direction of arrow.

Installation:

Make sure headlight (3) is correctly seated in lower holder.

• Adjust gap dimensions (see fig. 14 and fig. 15 below)

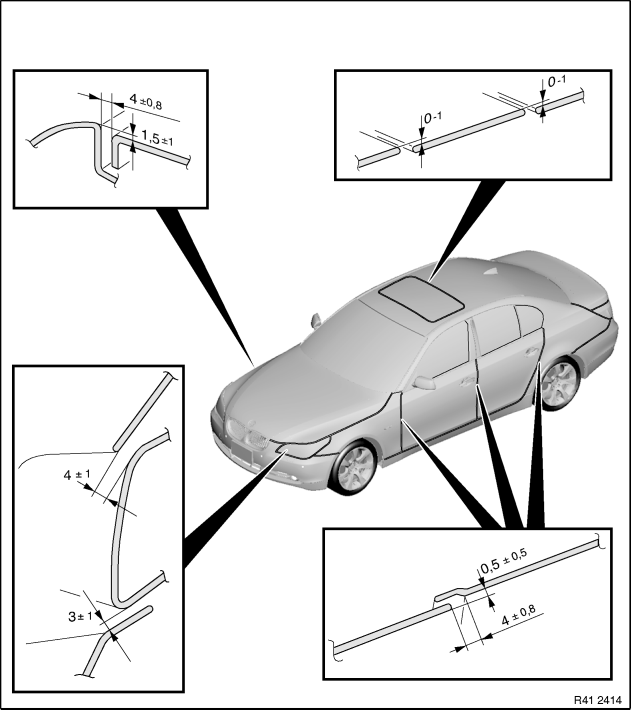

  Fig 1: Identifying Gap Dimensions, Body (1 Of 2)

  Courtesy of BMW OF NORTH AMERICA, INC.

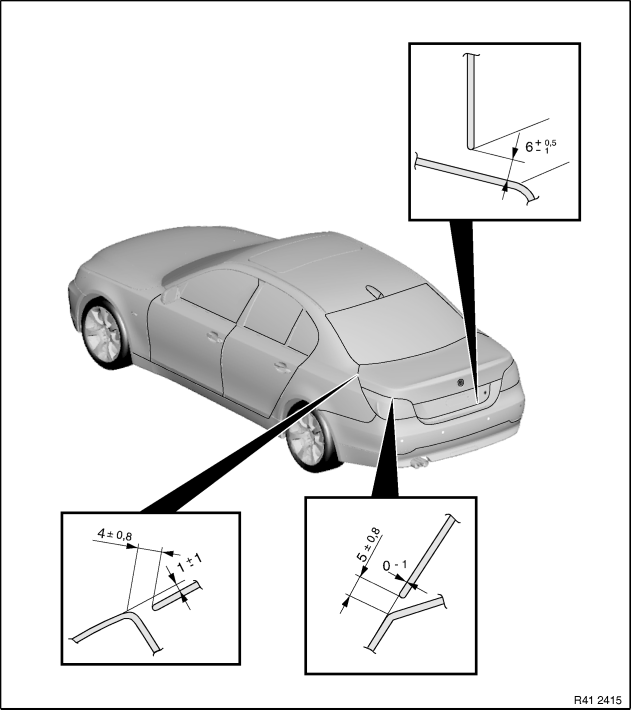

  Fig 2: Identifying Gap Dimensions, Body (2 Of 2)

  Courtesy of BMW OF NORTH AMERICA, INC.
• Adjust HEADLIGHTS

Fig 3: Identifying Headlight And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (1) and remove cap (2) in direction of arrow.

Fig 4: Identifying Cap And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Build date up to 02/05:

Turn ignition unit for xenon headlight (1) approx. 30° counterclockwise and detach.

Plug connection (2) is automatically released by turning ignition unit for xenon headlight (2).

Lay plug connection (2) to one side.

Installation:

Make sure ignition unit is correctly engaged.

Fig 5: Identifying Plug Connection And Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 02/05:

Disconnect plug connection (1).

Turn ignition unit for xenon headlight (2) approx. 30° counterclockwise and detach.

Replacement:

Remove xenon headlight bulb holder.

Fig 6: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
