21 2 300 Centering Fixture

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE:

For centering double-plate clutch on engine.

Series: E60, E63

Engine: S85

SI number: 1 02 05 (173)

Order number: 21 2 300

Centering fixture

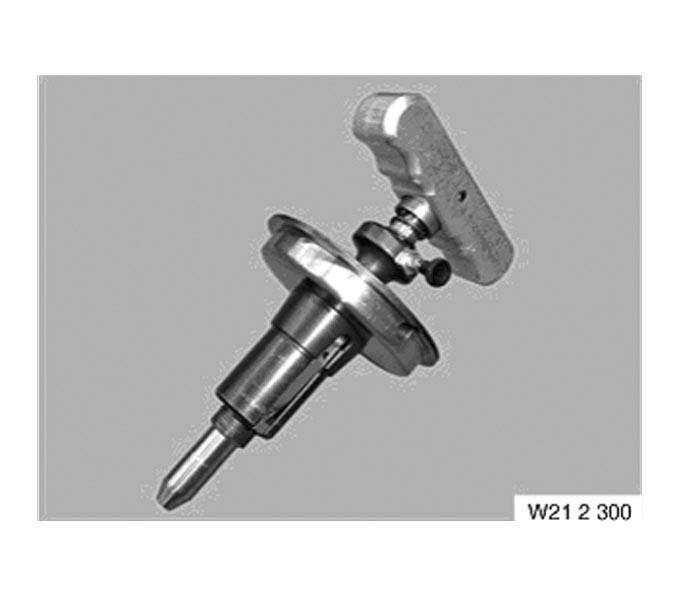

Fig 1: Identifying Clutch Centering Fixture - W21 2 300

Courtesy of BMW OF NORTH AMERICA, INC.
