21 2 280 Clutch Centering Tool

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For centring drive plate to driven plate when installing clutch on engine. Transmission: GS6-53DG with S85, S65

Transmission: GS6-53BZ

SI number: 01 18 06 (295)

Order number: 21 2 280

Clutch centering tool

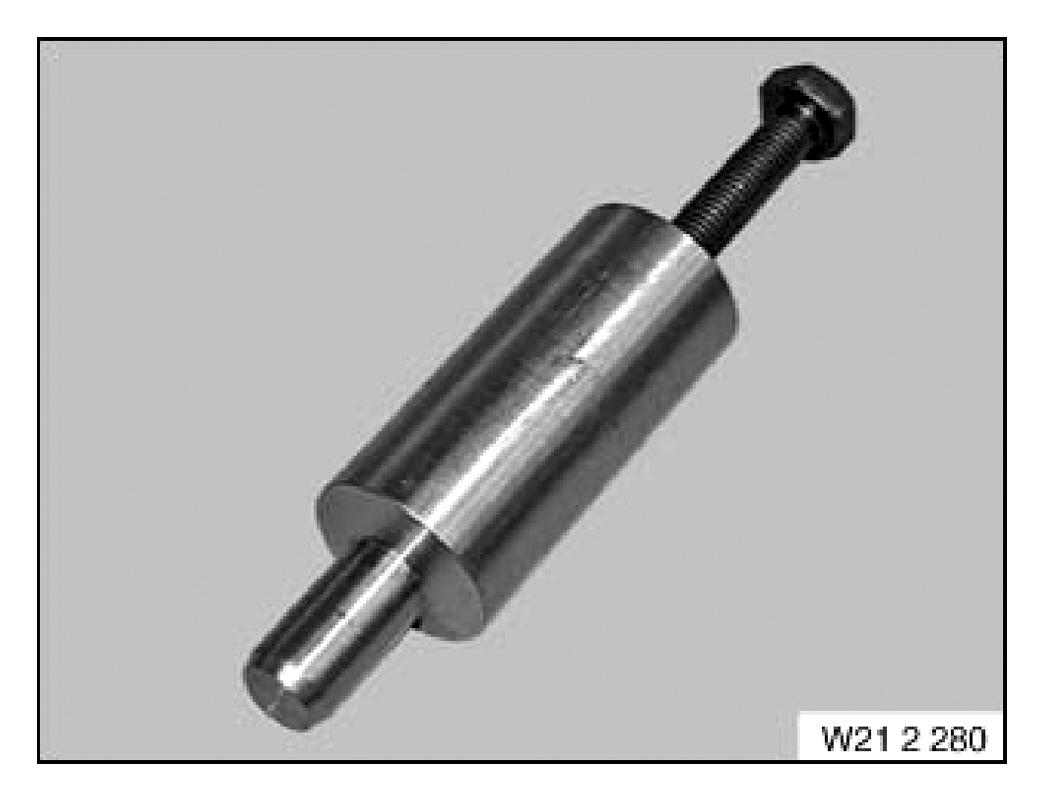

Fig 1: Identifying Clutch Centering Tool

Courtesy of BMW OF NORTH AMERICA, INC.
