22 32 001 Replacing Rubber Mount For Transmission Mounting

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear underbody protection.
Remove complete EXHAUST SYSTEM .
Remove exhaust system bracket (M47/N47)
Support transmission with lifter.

If necessary, remove heat shield (1) on left and right.

Fig 1: Identifying Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

M57/M57T2 only

Release screws (1) and nuts (2) and remove transmission cross-member.

Remove rubber mount from transmission cross-member.

Tightening torque 22 32 3AZ/ 4AZ . See 22 32 TRANSMISSION MOUNTS

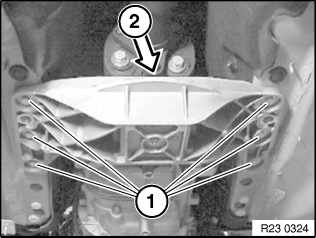

Fig 2: Locating Transmission Cross-Member And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

M57/M57T2 onlyM54/N52/N62/N54 only:

Release screws (1) and nuts (2) and remove transmission cross-member.

Remove rubber mount from transmission cross-member.

Tightening torque 22 32 3AZ/4AZ . See 22 32 TRANSMISSION MOUNTS for specs.

NOTE: On N62TU from 03/07, remove grounding strap from transmission support block.

NOTE: Illustration similar.

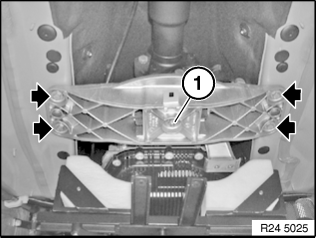

Fig 3: Identifying Cross-Member Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

(M47/N47)

Release screws and nut (1).

Remove cross member.

Tightening torque 22 32 3AZ/4AZ . See 22 32 TRANSMISSION MOUNTS for specs.

Fig 4: Locating Cross-Member Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

(M47/N47)

Slacken nut (1).

Exchange rubber mount.

Tightening torque 22 32 3AZ . See 22 32 TRANSMISSION MOUNTS for specs.

Fig 5: Identifying Nut
