22 11 100 Replacing Right Engine Support Arm (N62)
WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure ENGINE IN INSTALLATION POSITION
- Remove both front wheels
- Remove front underbody protection
- Remove REINFORCEMENT PLATE
- Lower FRONT AXLE SUPPORT
- OBSERVE SAFETY INSTRUCTIONS ON RAISING THE VEHICLE

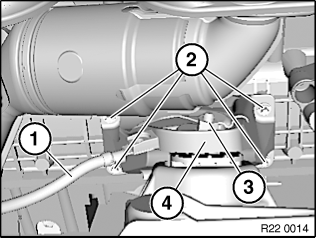

Release grounding strap (1) from engine support arm.
NOTE:
- Clean contact surfaces to ensure a safe ground connection.
Release screws (2) and nut (3) and remove engine support arm.
Tightening torque 22 11 2AZ/3AZ. See 22 11 ENGINE SUSPENSION .
