22 11 001 Replacing Right Engine Mount (N62)

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure ENGINE IN INSTALLATION POSITION .
REMOVE UNDERBODY PROTECTION
Remove both front wheels
Remove REINFORCEMENT PLATE
Lower FRONT AXLE SUPPORT
OBSERVE SAFETY INSTRUCTIONS ON RAISING THE VEHICLE

Release nut (1) and screws (2).

Tightening torque 22 11 1AZ/2AZ . See 22 11 ENGINE SUSPENSION for specs.

Remove engine mount.

NOTE: Illustrations show M57
.

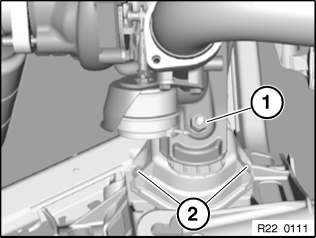

Fig 1: Locating Engine Mount Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lug (1) of engine mount must point to middle of vehicle.

Engine mount designations:

Right engine mount: Even component number
Left engine mount: Odd component number

Fig 2: Locating Lug Of Engine Mount
Courtesy of BMW OF NORTH AMERICA, INC.
