65 00 .. Overview Of Audio Components

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

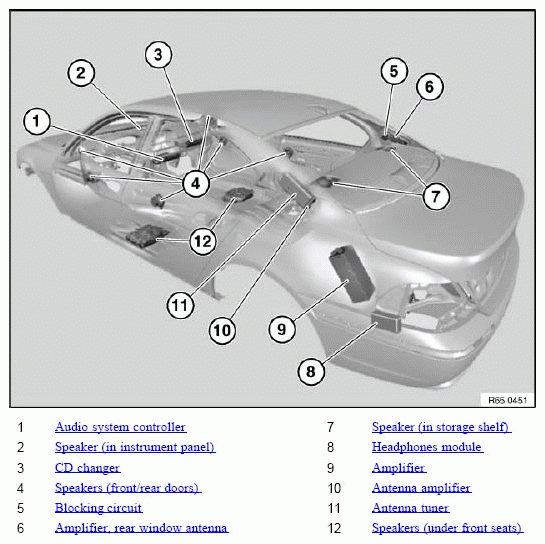

Fig 1: Identifying Audio Components
G04780694Courtesy of BMW OF NORTH AMERICA, INC.
