54 12 .. Overview Of Glass Slide/Tilt Sunroof

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

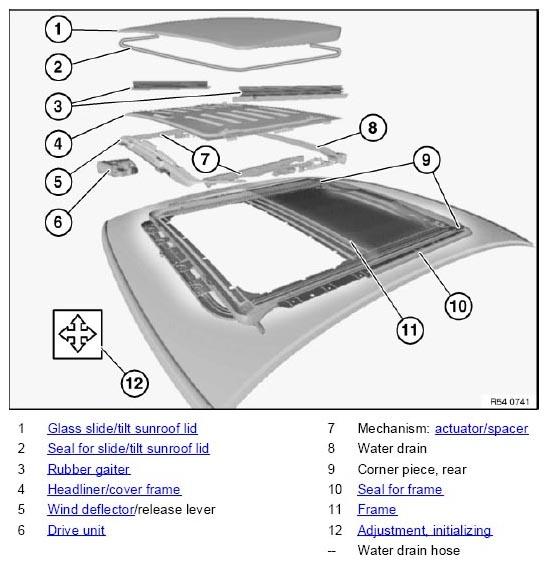

Fig 1: Identifying Glass Slide/Tilt Sunroof Components
G04780058Courtesy of BMW OF NORTH AMERICA, INC.
