Section 1528 (Seats - Repair)
>>
24 Rear Seat, Normal
>>
52 24 ... Overview Of Rear Seat (Normal)
52 24 ... Overview Of Rear Seat (Normal)
WARNING:
This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

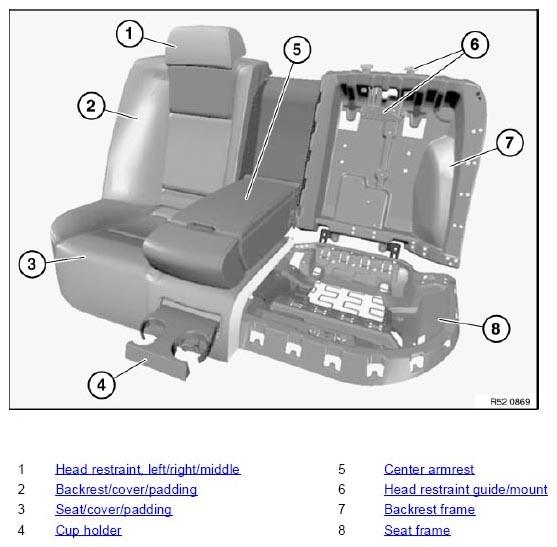

Fig 1: Identifying Rear Seat (Normal) Components
Courtesy of BMW OF NORTH AMERICA, INC.
