51 71 447 Removing And Installing Or Replacing Panel For Cover On Left Or Right Side Member

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach wheel arch cover from front/rear side member cover. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

Release screws (1).

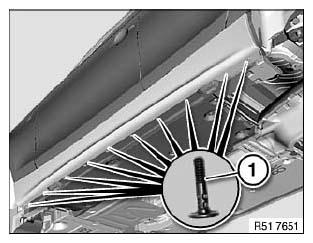

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip panel (1) at holders (2) in direction of arrow and remove.

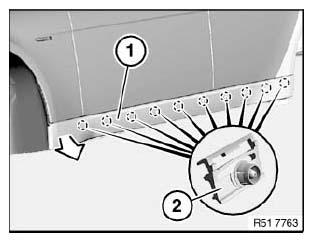

Fig 2: Identifying Unclip Panel And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installation, soak holders (1) in water.

If necessary, detach holders (1) from body and fit on panel (3).

If necessary, detach grommets (2) from holders (1) and place on body.

If necessary, replace faulty holders (1) and grommets (2).

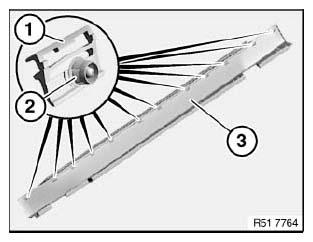

Fig 3: Identifying Grommets And Holders

Courtesy of BMW OF NORTH AMERICA, INC.
