51 45 360 Removing And Installing/Replacing Wood Trim On Left

Special tools required:

• 00 9 321

Remove  left fresh-air grill.

Remove instrument cluster trim. This task is described  in 51 45 363 REMOVING AND INSTALLING/REPLACING CENTER WOOD TRIM ON INSTRUMENT PANEL .

Release nut (1).

Installation:

Tightening torque, 51 45 2AZ.  See BODY EQUIPMENT - TIGHTENING TORQUES -- ALPINA .

Fig 1: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

With special tool 00 9 321  (fishbone) through opening for fresh air grill, unclip wood trim (3) next to retaining pin (2).

Remove wood trim (3) in direction of arrow.

Fig 2: Removing Wood Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of wood trim (4) must not be damaged or missing:

1. Shaft
2. Speed nut
3. Stud
   Fig 3: Identifying Wood Trim Components

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clip (1) (Hutfix).

Fig 4: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing clip (Hutfix):

1. Turn clip (1) with screwdriver to left by approx. 60°.
2. Lever out clip (1) from below.
   Fig 5: Turning Clip With Screwdriver

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

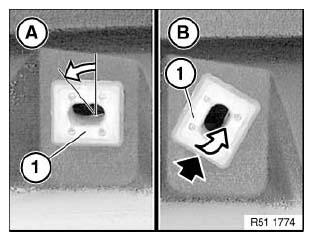

1. Insert clip (1) from above and snap into place at bottom.

   Then turn clip (1) with screwdriver to right by approx. 60°.

2. Clip (1) in end position.
   Fig 6: Inserting Clip

   Courtesy of BMW OF NORTH AMERICA, INC.
