51 17 400 Removing And Installing/Replacing Bump Stop With Ejector For Filler Flap

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Release cover (1).

Press catches (2) together and pull out ejector (3).

Installation:

Install ejector (3) with fitted cover (1).

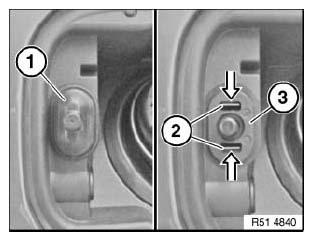

Fig 1: Pressing Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on ejector (2) must not be damaged.

Make sure cover (3) is correctly seated on ejector (2).

Fig 2: Identifying Catches On Ejector

Courtesy of BMW OF NORTH AMERICA, INC.
