51 16 060 Removing And Installing/Replacing Interior Rearview Mirror (Overview)

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Version with cable (X) for:
  • Automatic dim action (electro-chrome technology) for interior rearview mirror
  • Fogging sensor
  • Remote control (infrared or radio)
  • Autobeam
  • Garage door opener
  • Compass
  • Rain sensor

Version  without cable (X) with full foot (1).

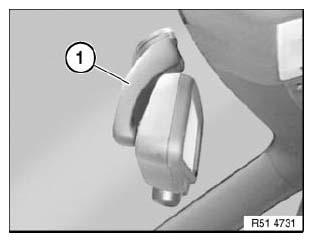

Fig 1: Identifying Full Foot
G04728215Courtesy of BMW OF NORTH AMERICA, INC.

Version  with cable (X) and plug trim cover (1).

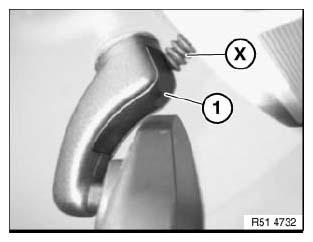

Fig 2: Identifying Plug Trim Cover
G04728216Courtesy of BMW OF NORTH AMERICA, INC.

Version  with mirror arm end caps (1).

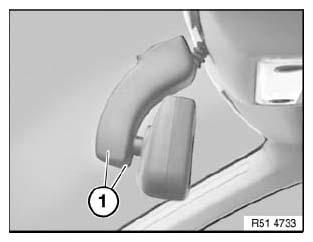

Fig 3: Identifying Mirror Arm End Caps
G04728217Courtesy of BMW OF NORTH AMERICA, INC.

Version  with rain sensor.

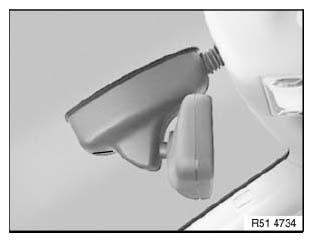

Fig 4: Identifying Rain Sensor
G04728218Courtesy of BMW OF NORTH AMERICA, INC.

Version  with Autobeam.

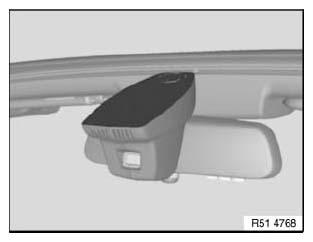

Fig 5: Identifying Autobeam
G04728219Courtesy of BMW OF NORTH AMERICA, INC.

Version  with toll mirror for Japan.

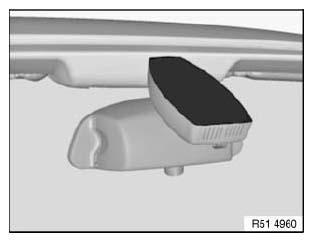

Fig 6: Identifying Toll Mirror For Japan
G04728220Courtesy of BMW OF NORTH AMERICA, INC.
