51 14 110 Removing And Installing/Replacing Rear Model Designation (From 03/2005)

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail. See 51 14 ... INSTRUCTIONS FOR ATTACHING NUMBER/LETTER DESIGNATION COMBINATION .

Fitting dimensions (E65, E66, E67):

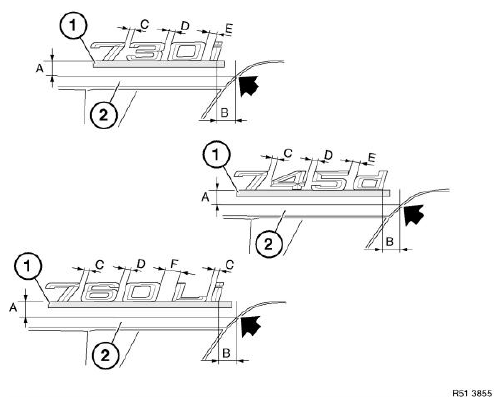

Fig 1: Identifying Fitting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Attach adhesive tape (1) to rear lid above trim strip (2) up to top edge "A". Mark measurement "B" from outermost corner point of trim strip (2) on adhesive tape (1).

Dimensions:

A = 22 mm

B = 25 mm

NOTE: Measurements C, D, E and F are for information purposes only, as determined by carrier film.
C = 8 mm, D = 10 mm, E = 16 mm, F = 26 mm
