34 51 ... Overview Of Mechanical/Hydraulic Components

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

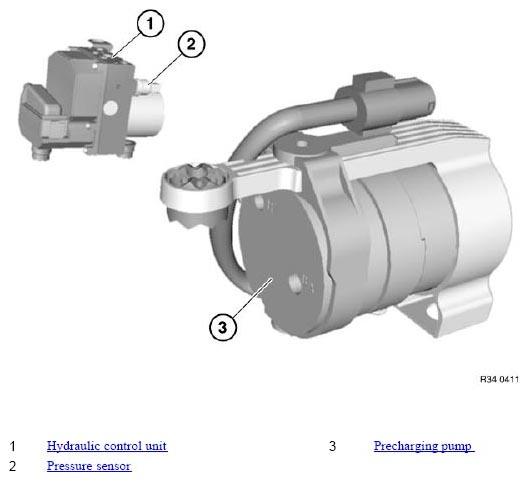

Fig 1: Overview Of Mechanical/Hydraulic Components
G04778849Courtesy of BMW OF NORTH AMERICA, INC.
