Models Without A Transmission Dipstick

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2006 BMW X3, 2005 BMW X3, 2004 BMW X3, 2003 BMW Z8, and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

To check and add fluid on transmissions without dipstick, see Fig 1.

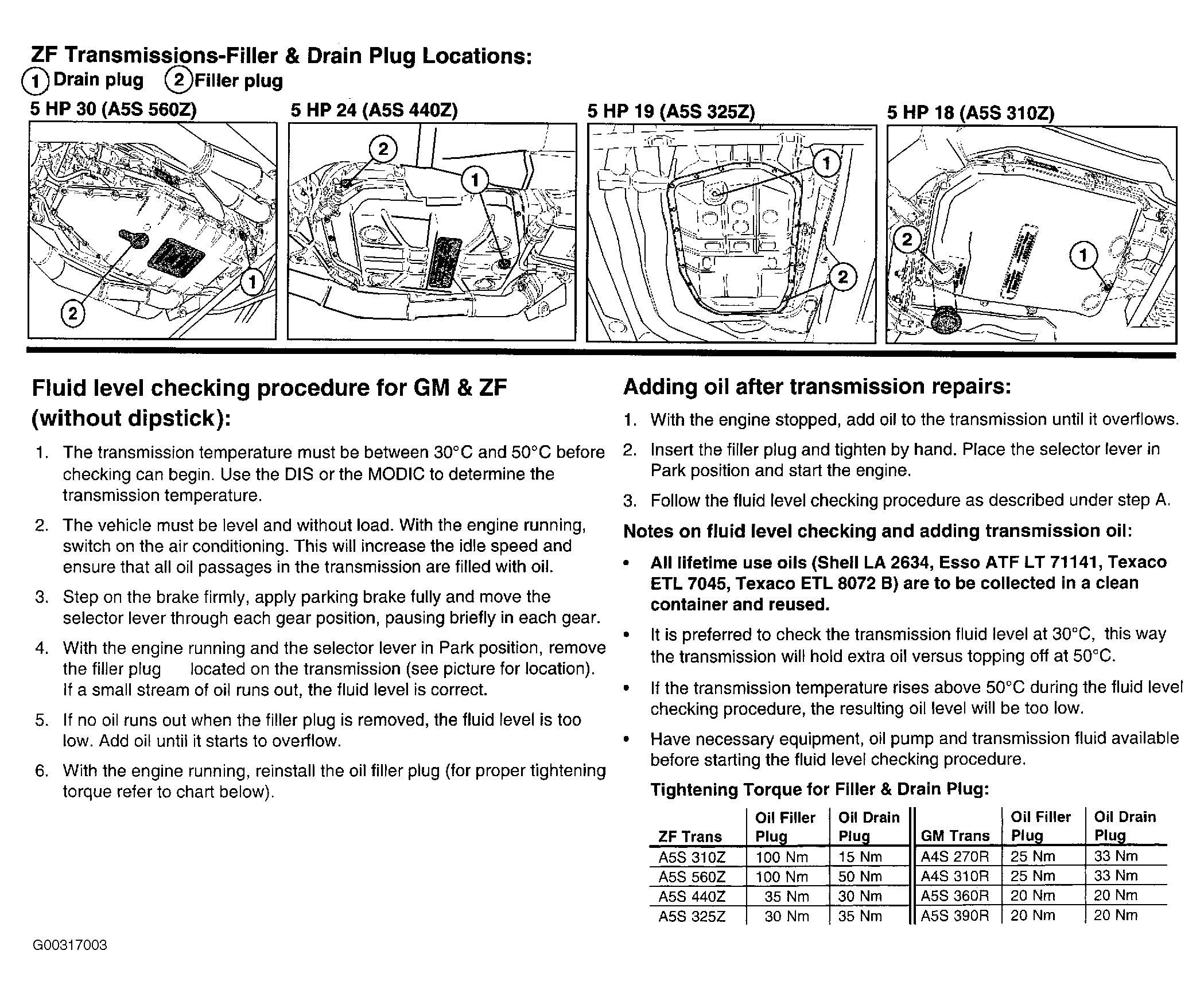

Fig 1: Checking & Adding Fluid On Transmissions Without Dipstick
G00317003Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: For the latest oil specifications, refer to A4S 200R (GM4) & A5S 360R/390R (GM5) .
