Strut With Coil Spring: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 550i, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
- Remove swivel bearing. See SWIVEL BEARING .

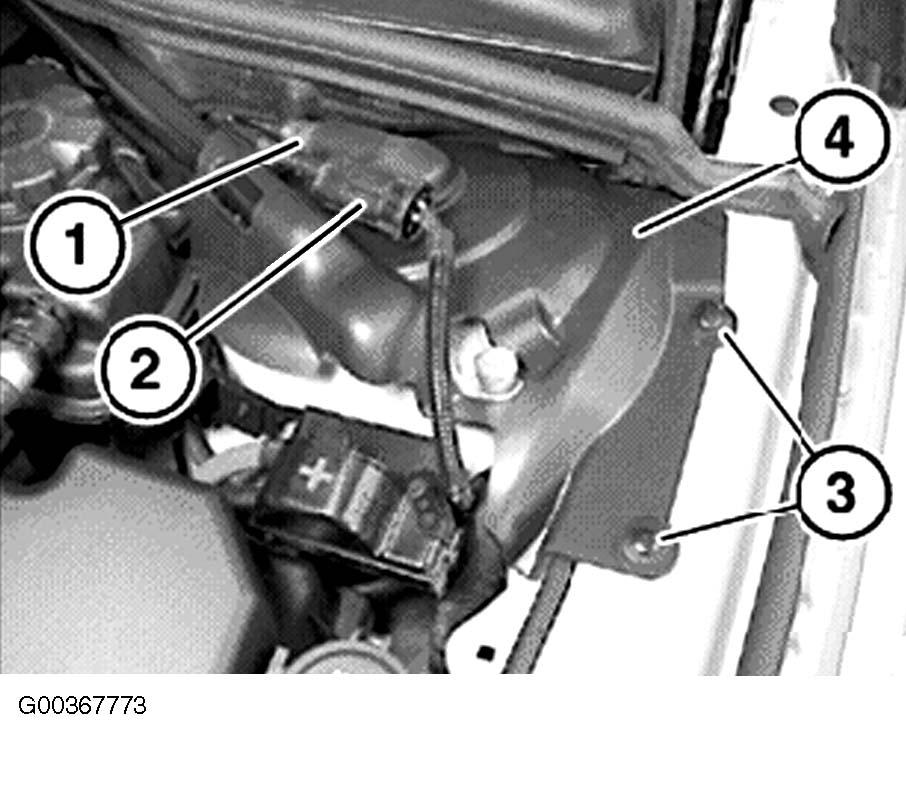

- On vehicles with S85, disconnect connector (2). See Fig 1. Unclip connecting cable (1) from spring strut dome cover (4). Detach connecting cable (1) from front spring strut. On vehicles built from 08/2004, release expansion rivet (3). Unclip spring strut dome cover (4) from front cross-strut.
- If no centering pin is fitted, mark position of studs in relation to wheel arch.
- Secure spring strut from falling out. Remove strut-to-wheel arch nuts. See Fig 2.
- Remove spring strut downwards out of wheel arch.
