Front Active Stabilizer Bar: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 550i, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Draw off and dispose of hydraulic fluid from fluid reservoir. Observe appropriate waste-disposal regulations.
  2. Remove front underside protection. If necessary, remove wheel suspension cover.
  3. Remove nuts (1). See Fig 1. Remove pressure lines and vent lines (2) from oscillating motor and disconnect.
  4. Remove stabilizer link on both sides from stabilizer.
  5. If necessary, remove holder with hydraulic line from retaining bracket.
  6. Remove screw (1) and nut (2) on both sides. See Fig 2. Remove stabilizer from front axle carrier. Check anti-friction bearings on both sides for damage. Replace stabilizer as necessary.
  7. If replacing active stabilizer bar, remove retaining bracket on both sides. Check rubber mount on both sides. Replace as necessary.
  8. To install, reverse removal procedure. Replace self-locking nuts. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
  9. Fill and bleed hydraulic system. Check pipe connections for leaks. Initialize Dynamic Drive. See INITIALIZING DYNAMIC DRIVE .

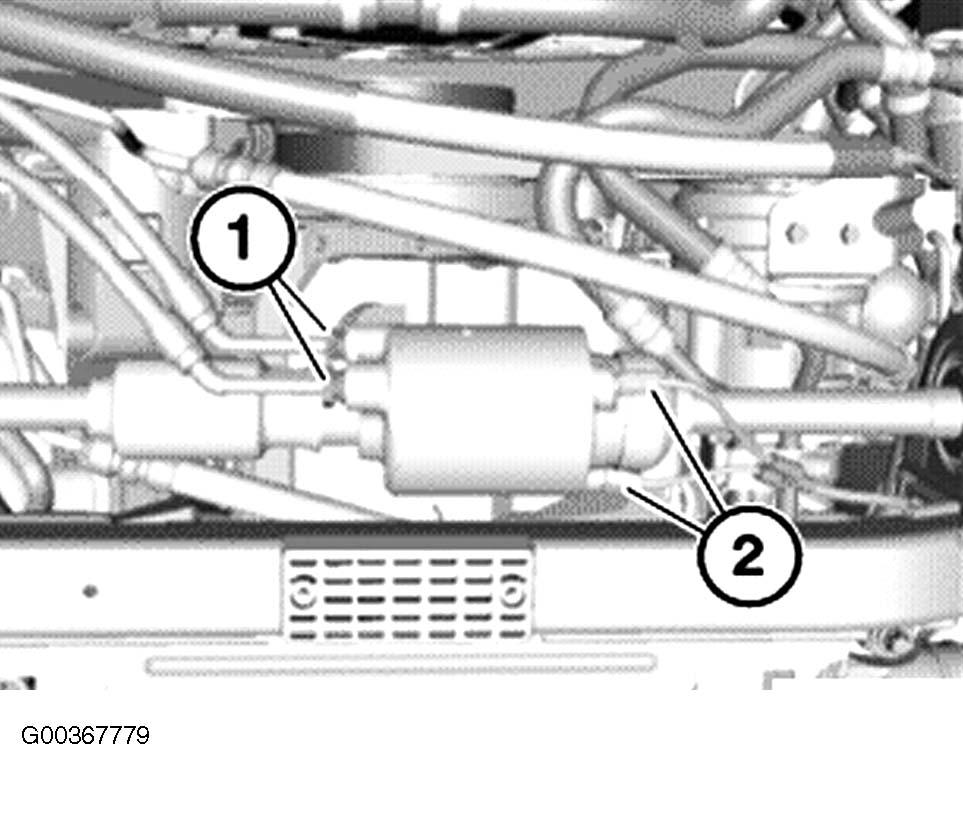

Fig 1: Removing Pressure Lines & Vent Lines
G00367779Courtesy of BMW OF NORTH AMERICA, INC.

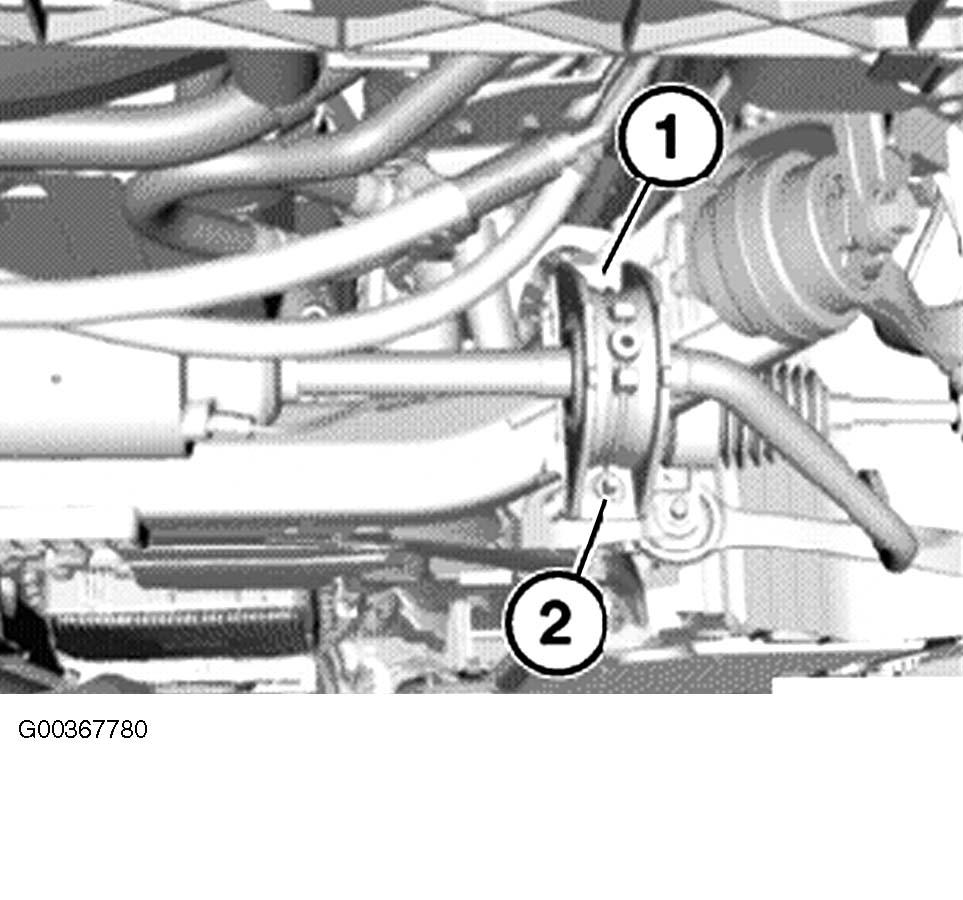

Fig 2: Removing Front Active Stabilizer Bar
G00367780Courtesy of BMW OF NORTH AMERICA, INC.
