72 11 ... Removing and installing/replacing seat belt for 3rd seat row on left or right
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove panel for roof pillar at rear. See 51 43 259 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR ROOF PILLAR (D-PILLAR), LEFT OR RIGHT .
- Remove luggage compartment trim panel. See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) .
The operation is shown without the capping for improved clarity.

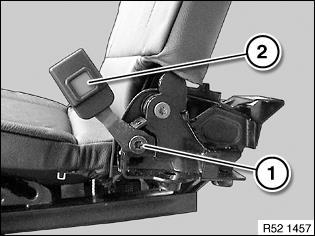

Release screw (1). Installation: Replace screws (1). Tightening torque 72 11 40AZ, see 72 11 SEAT BELTS . Remove inertial reel mechanism (2). Installation: Inertia reel mechanism (2) is coded against incorrect installation.
