72 11 ... Removing and installing/replacing center lower strap fitting for 3rd seat row
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove center trim. See 52 30 .. REMOVING AND INSTALLING MIDDLE TRIM FOR 3RD SEAT ROW .

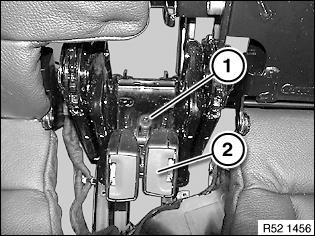

Release screw (1). Tightening torque, see 72 11 44AZ in 72 11 SEAT BELTS . Remove lower strap fitting (2). Installation: Lower strap fitting is coded to prevent incorrect installation.
