66 20 536 Removing and installing/replacing a rear middle left ultrasonic transducer (Park Distance Control)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard! Work on the exhaust system may only be carried out when it has cooled down!

NOTE: Ultrasonic transducers (1) can be removed without the bumper trim being removed.

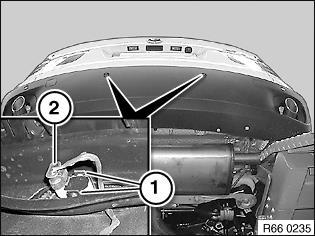

Fig 1: Ultrasonic Transducers (1) Can Be Removed Without Bumper Trim Being Removed

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining tabs (1). Pull ultrasonic transducer out of holder and disconnect plug connection (2).

Fig 2: Pull Ultrasonic Transducer Out Of Holder And Disconnect Plug Connection (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).

Fig 3: Make Sure Rubber Ring (1) Is Correctly Seated On Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.
