64 22 521 Removing and installing/replacing A/C system compressor (N52K)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 030 (Wedge)
WARNING:
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant R 134a . See 64 50 ... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A .
Follow safety instructions for handling refrigerant oil . See 64 50 ... INSTRUCTIONS FOR HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134A) .
Follow safety instructions for handling refrigerant R 134a . See 64 50 ... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A .
Follow safety instructions for handling refrigerant oil . See 64 50 ... INSTRUCTIONS FOR HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134A) .
IMPORTANT:
Risk of damage
Restart engine only when A/C system has been correctly filled.
Read and comply with notes on replacing compressor . See 64 52 ... INSTRUCTIONS FOR COMPRESSOR REPLACEMENT .
Follow instructions for opening and replacing parts in refrigerant circuit! See 64 52 ... INSTRUCTIONS FOR OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .
If A/C system is opened for more than 24 hours:
Replacing drier insert for A/C system . See 64 53 517 REPLACING DESICCANT INSERT FOR A/C SYSTEM .
Restart engine only when A/C system has been correctly filled.
Read and comply with notes on replacing compressor . See 64 52 ... INSTRUCTIONS FOR COMPRESSOR REPLACEMENT .
Follow instructions for opening and replacing parts in refrigerant circuit! See 64 52 ... INSTRUCTIONS FOR OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .
If A/C system is opened for more than 24 hours:
Replacing drier insert for A/C system . See 64 53 517 REPLACING DESICCANT INSERT FOR A/C SYSTEM .
Necessary preliminary tasks:
- Drawing off, evacuating and filling the A/C system are not included in the time value given for this work operation. See 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
- Remove A/C compressor drive belt. See 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N52K) .
- Remove coolant thermostat. See 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (N52K) .
- Remove assembly underside protection at side top.

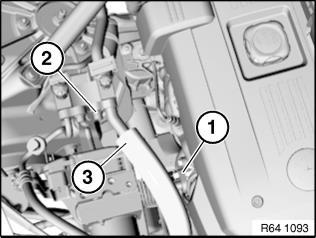

Release screw (1). Tightening torque 64 53 1AZ. Release screw (2) and remove refrigerant line (3). Tightening torque 64 53 4AZ. Installation: Replace sealing rings. Use special tool 00 9 030 to mount sealing rings without damaging them.

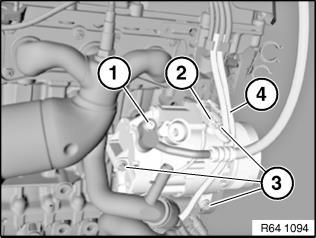

Release screw (1) and remove refrigerant line. Tightening torque, see 64 53 4AZ in 64 53 REFRIGERANT LINES AND EXPANSION VALVE . Disconnect plug connection (2). Release screws (3) and remove compressor by pulling upwards.
Installation:
- Replace screws (3)
- Tightening torque, see 64 52 3AZ in 64 53 REFRIGERANT LINES AND EXPANSION VALVE .
- Make sure line (4) is correctly routed
- Check adapter sleeves for damage, replace if necessary
After Installation:
- Fill cooling system, vent and check for leaks. See 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATER LEAKS (N52K) .
- Evacuate and fill A/C system .
